Used in industries like mining and mineral processing, ball mills are grinding machines that pulverize materials. They use steel balls to grind crushed materials into a fine powder, typically with a particle size between 20 and 75 micrometers. Grate and overflow types are common configurations of ball mills.

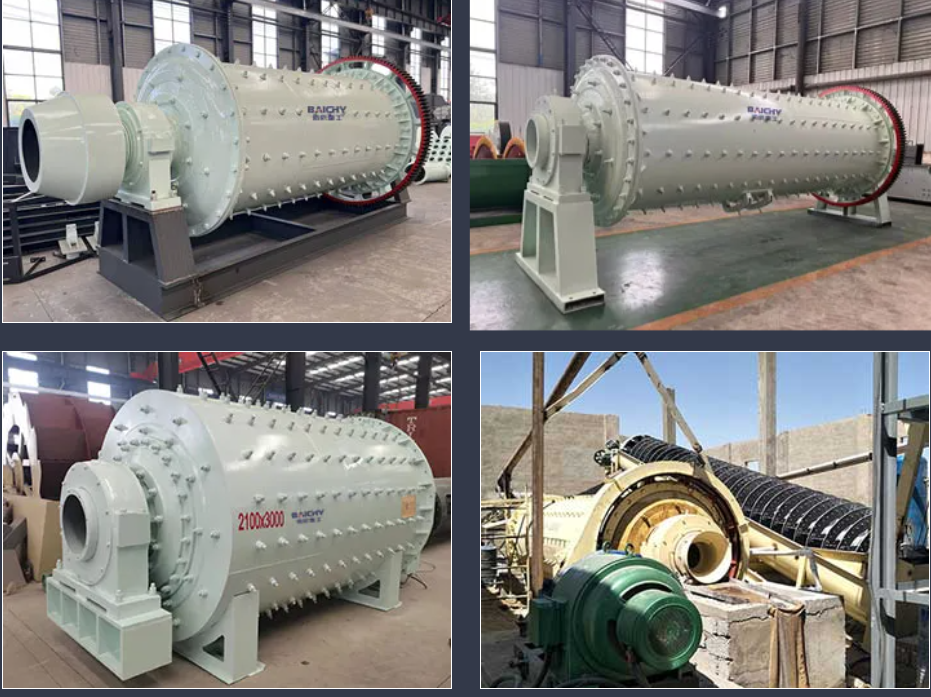

The ball mill is a horizontal grinding mill with an external gear and two internal compartments (bins). Material is fed through a quill shaft into the first bin, lined with either ladder or ripple liners and containing steel balls of varying sizes. Rotation of the mill creates centrifugal force, lifting the balls and causing them to impact the material as they fall, achieving a grinding effect. The partially ground material then passes through a diaphragm into the second bin, lined with flat liners and containing smaller grinding media, for further size reduction. Finally, the finished product is discharged through an output board.
What is ball mill?
Ball mills are essential grinding machines with a secondary mixing effect. They are widely employed in industries like mining, building materials, and chemicals to further process crushed materials. The grinding process involves a rotating cylinder filled with steel balls that pulverize the material. Ball mills can process a variety of materials, including ores (gold, copper, magnetite, antimony), industrial minerals (calcite, kaolin, mica, clay, bentonite), and other ferrous and non-ferrous metals. They can operate using either wet or dry grinding methods, and are classified as either grid type or overflow type based on how the material is discharged.
Choosing the Right Ball Mill
Selecting the optimal ball mill for your needs involves considering various factors beyond just capacity. Here's a breakdown of key aspects to help you make an informed decision:
1. Factors Affecting Capacity:
While capacity is a primary concern, it's influenced by several factors:
Material Characteristics: Hardness, abrasiveness, and grindability of the material.
Feed Size and Desired Product Size: The size of the input material and the desired fineness of the output.
Liner Design: The shape and material of the mill's lining.
Mill Speed: The rotational speed of the mill.
Grinding Media: The type, size, and quantity of grinding balls.
Slurry Density: The concentration of solids in the slurry (for wet grinding).
Classifier Type and Operating System: The efficiency of the classifier in separating ground material.
2. Cylinder Shape:
Short-cylinder with single-bin structure: Ideal for coarse or primary grinding due to its high efficiency. Choose this for applications where initial size reduction is crucial.
3. Discharge Method:
Overflow Type: Discharges material through a hollow shaft. Suitable for fine grinding and offers energy savings due to gravity discharge.
Grate Discharge Type: Discharges material through a grate plate, allowing for precise control over the discharge size and efficient fine grinding.
4. Transmission Method:
Central Transmission: The motor drives the mill through a reducer and a central hollow shaft.
Edge Transmission: The motor drives a gear on the edge of the mill to rotate the cylinder.
5. Energy Consumption:
Energy-Saving Ball Mill: Opt for this if energy efficiency is a priority.
Standard Ball Mill: Suitable for applications where energy consumption is not a major concern.
Beyond the Basics:
Manufacturer Reputation: Choose a reputable manufacturer with a proven track record of quality and reliability.
Maintenance and Support: Consider the availability of spare parts, maintenance services, and technical support.
Cost: Evaluate the overall cost, including initial investment, operating costs, and maintenance expenses.
By carefully considering these factors, you can select the most suitable ball mill for your specific application and operational requirements.
