Moulds are the geometric starting point of consistency in a ceramic sanitary ware factory, but they are not the only factor.
The dimensions, surfaces, interfaces and parting accuracy of the master model are copied into production moulds and then transferred to the green body.
Any unnoticed deviation can therefore be repeated across an entire batch.
Slip shrinkage, demoulding support, drying and firing still change the final dimensions. The master model sets the quality ceiling; the process system determines how consistently the factory can approach it.

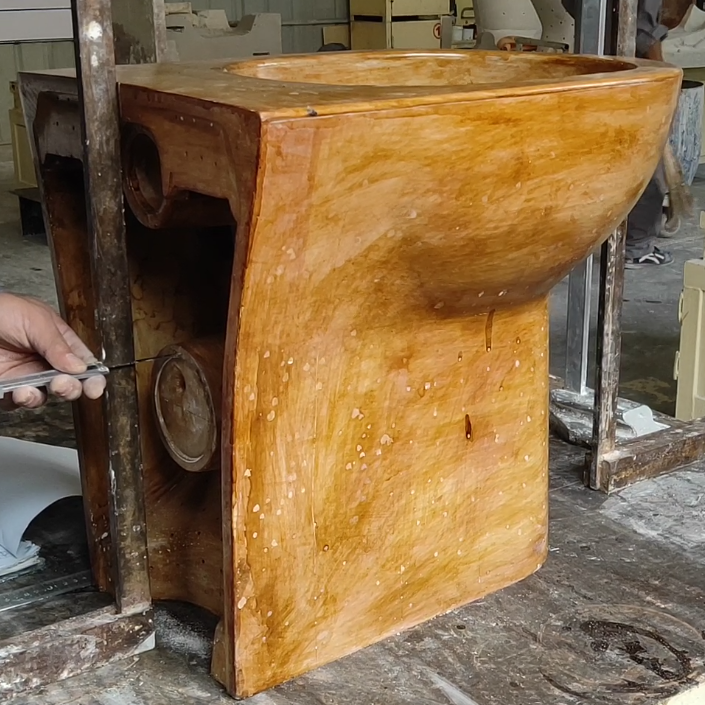

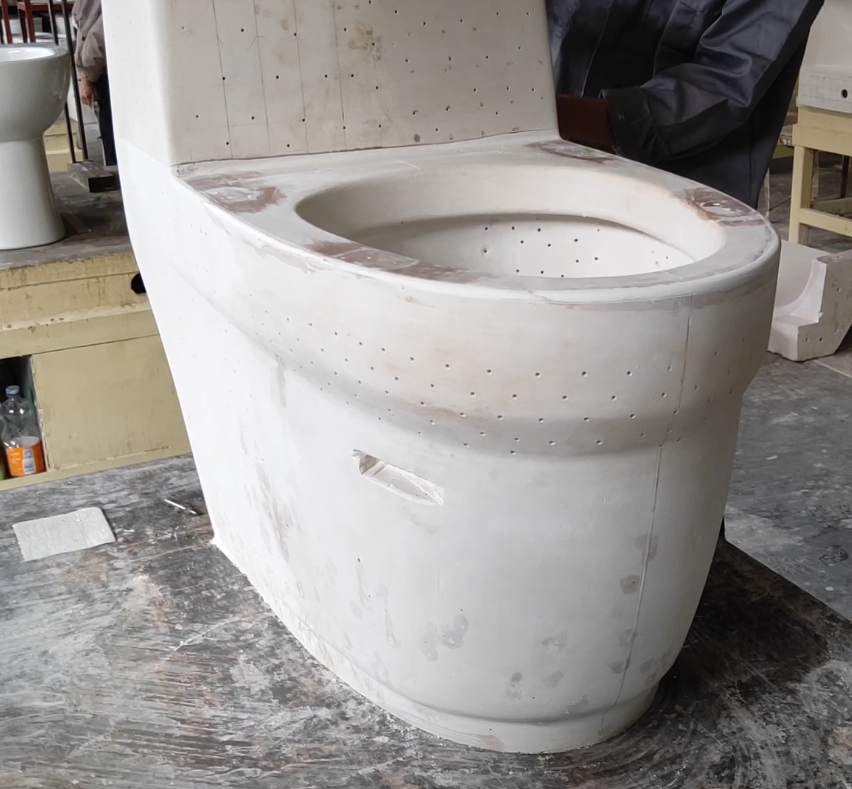

The master model is the original geometric reference used to manufacture working moulds. Its accuracy includes more than overall length and width. It also covers waterway positions, mounting-hole spacing, outlet alignment, sealing surfaces, curve continuity, parting lines and shrinkage compensation. Industrial sanitary ware modelling guidance describes product development as a complete route from sketches and CAD/CAM processing to 3D prototypes and resin moulds. Its technical guidance also links mould development with drainage systems, demoulding and dedicated product supports. This shows that mould accuracy affects both appearance and manufacturing performance. |  |
Geometric errors are reproduced. If the master contains an incorrect hole position, asymmetric profile or discontinuous surface, every working mould derived from it can repeat the same problem. Manual finishing may hide a small surface issue, but it cannot reliably correct a functional interface or overall geometry on every piece. Shrinkage compensation must be based on data. Ceramic bodies continue to change from wet casting to dry body and then to fired product. Digitalfire’s slip-casting reference notes that drying shrinkage in slip-cast ware can be as low as approximately 1.5%–2%. Additional shrinkage occurs during firing as the ceramic matrix densifies. |  |
Working-mould condition affects repeatability. Parting alignment, permeability, drainage paths and mould wear influence wall thickness, seams, release stress and dimensional stability. Complex high-pressure-cast products may also require dedicated handling supports to limit deformation during demoulding, transfer and drying. Process development identifies product support as part of mould and process development for complex unfired geometries.
Compare the CAD file, master model, first green body and fired product using 3D scanning or verified gauges.
Define critical dimensions for mounting surfaces, trapways, outlets and sealing interfaces.
Track output, repairs, wall thickness and deformation by mould identification number.
Manage shrinkage data by product, direction, kiln position and slip batch.
Repeat first-article approval after every master-model revision.
Do not use manual finishing as a substitute for engineering correction.
Sunlets has CNC machining, 3D scanning and sanitary ware mould-development capabilities. Because the company also operates ceramic factories, it can verify dimensional transfer from drawings and moulds to trial production and mass-produced ware within a connected development process.
This integrated approach is especially important for complex OEM and ODM products, where small deviations in the master model can affect installation interfaces, flushing waterways, component matching and final appearance.
Master-model accuracy determines how precise a sanitary ware product can become, while mould management determines whether that precision can be repeated.
A reliable factory should not inspect only the final fired piece. It should establish a dimensional control loop covering CAD, master model, working mould, green body and fired product, so errors are corrected before they are multiplied in production.
If the master model is accurate, will final dimensions always be stable?
Not automatically. Working-mould wear, slip shrinkage, demoulding support, drying and firing deformation must also remain controlled.
Why can’t manual finishing solve mould errors?
Manual finishing can correct limited surface imperfections, but it cannot consistently restore hole positions, functional interfaces, complete curves or overall shrinkage deviations across a large batch.
