Introduction
Have you ever wondered how the toilets and sinks you use daily transform from a simple lump of clay into smooth, white, durable ceramic fixtures? Behind this lies a journey of precision manufacturing that blends physics and chemistry. In fact, whether sanitaryware or architectural ceramics, their creation follows a similar macro-process: raw material preparation, forming and drying, high-temperature firing, and post-processing. Yet it is in the specific process details that sanitaryware reveals its uniquely stringent standards. Let us now unravel each step of this remarkable transformation.
Ⅰ Product Development Modeling

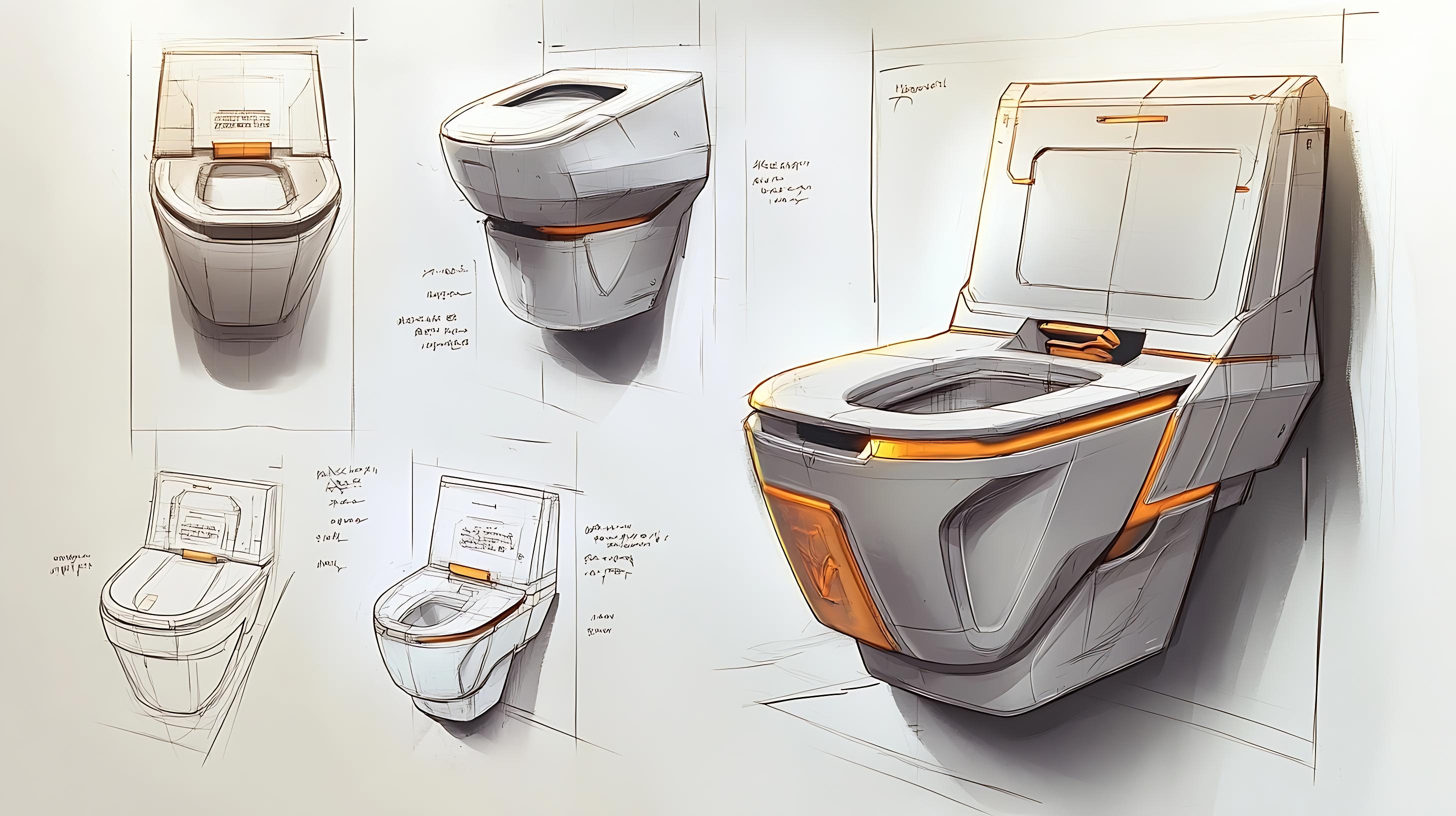

| During the product development modeling phase, designers use specialized software to shape the product's appearance, constructing a three-dimensional exterior model. Every curve and surface is meticulously refined to ensure compliance with aesthetic and ergonomic principles. Subsequently, the model is transferred to engineering software for in-depth development. The resulting digital prototype serves not only as a precise blueprint for the product's appearance but also as a comprehensive preview of its internal functionality and manufacturability, laying a solid foundation for subsequent mold design and production processes. |  |
Ⅱ Raw Material Preparation: Laying the Foundation for Quality
Raw materials form the bedrock of ceramic product quality. Multiple base materials—kaolin, clay, quartz, feldspar, and others—are precisely weighed according to scientific ratios. These materials are then combined with water in a ball mill, where continuous rolling and grinding ensures thorough mixing and refinement of all components. This process yields a uniform, fine-textured slurry with excellent fluidity.

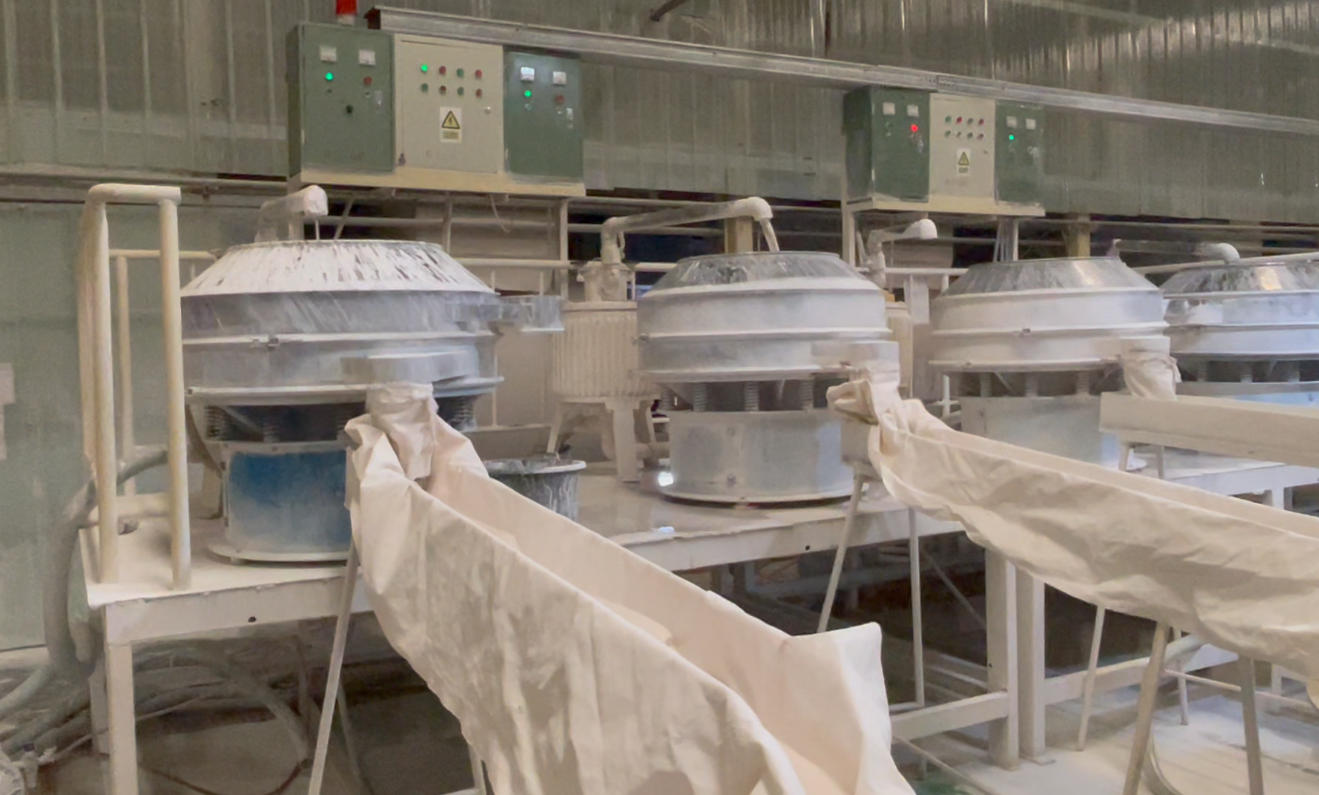

| The ground slurry undergoes rigorous iron removal and purification to completely eliminate iron impurities. This step is critical because even minute iron residue undergoes oxidation during subsequent high-temperature firing, forming black ferric oxide spots. These not only severely compromise the product's visual integrity but directly result in substandard goods. Thus, iron removal is pivotal to ensuring superior glaze quality and product grade. |  |
Ⅲ Slip Casting: Precision Shaping Within Gypsum Molds
Slip casting is the core process in sanitaryware manufacturing. It utilizes the microporous properties of specialized gypsum molds to physically adsorb and form the ceramic body.

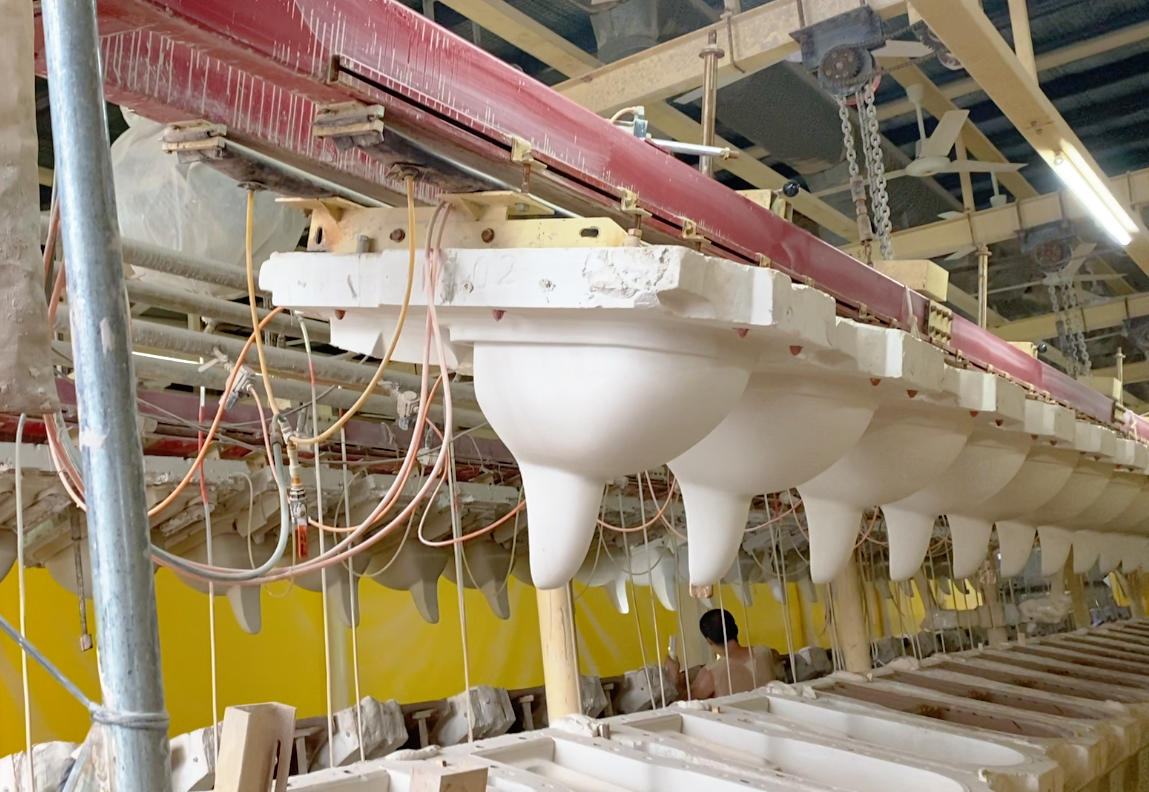

| The specific process is as follows: Prepared uniform slip is injected into hollow gypsum molds. The plaster mold acts as an efficient moisture exchanger, continuously absorbing water from the slip. As water permeates through the mold walls, solid ceramic particles gradually deposit on the inner surface, forming a uniformly thick and dense slip layer. Once the slip layer reaches the predetermined thickness, excess slip is drained from the mold. After appropriate drying and shrinkage, the mold is opened to reveal a structurally complete sanitaryware green body. |  |
Ⅳ Drying and Trimming: The Transformation from Wet to Refined Greenware
The demolded greenware possesses low strength and must immediately undergo precise drying and trimming.
Trimming and Bonding

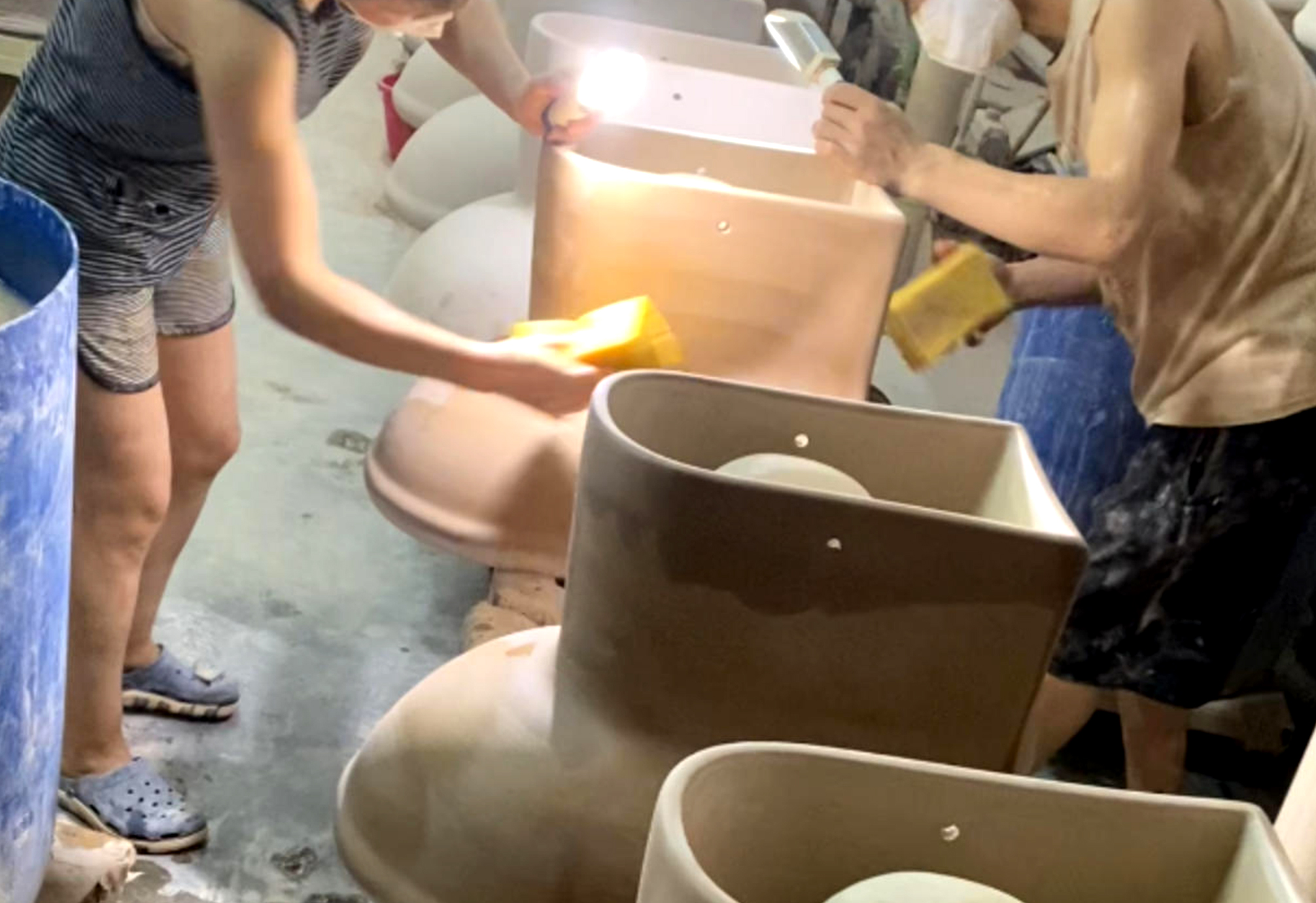

| After brief natural air-drying to achieve initial setting strength, artisans meticulously trim the surface to remove mold lines and burrs, ensuring a smooth, uniform form. Special bonding slurry is then used to precisely join separate components like the toilet tank and base into a single unit. This step is critically important, demanding exceptional skill from the artisan to ensure strong, seamless joints without visible traces. |  |

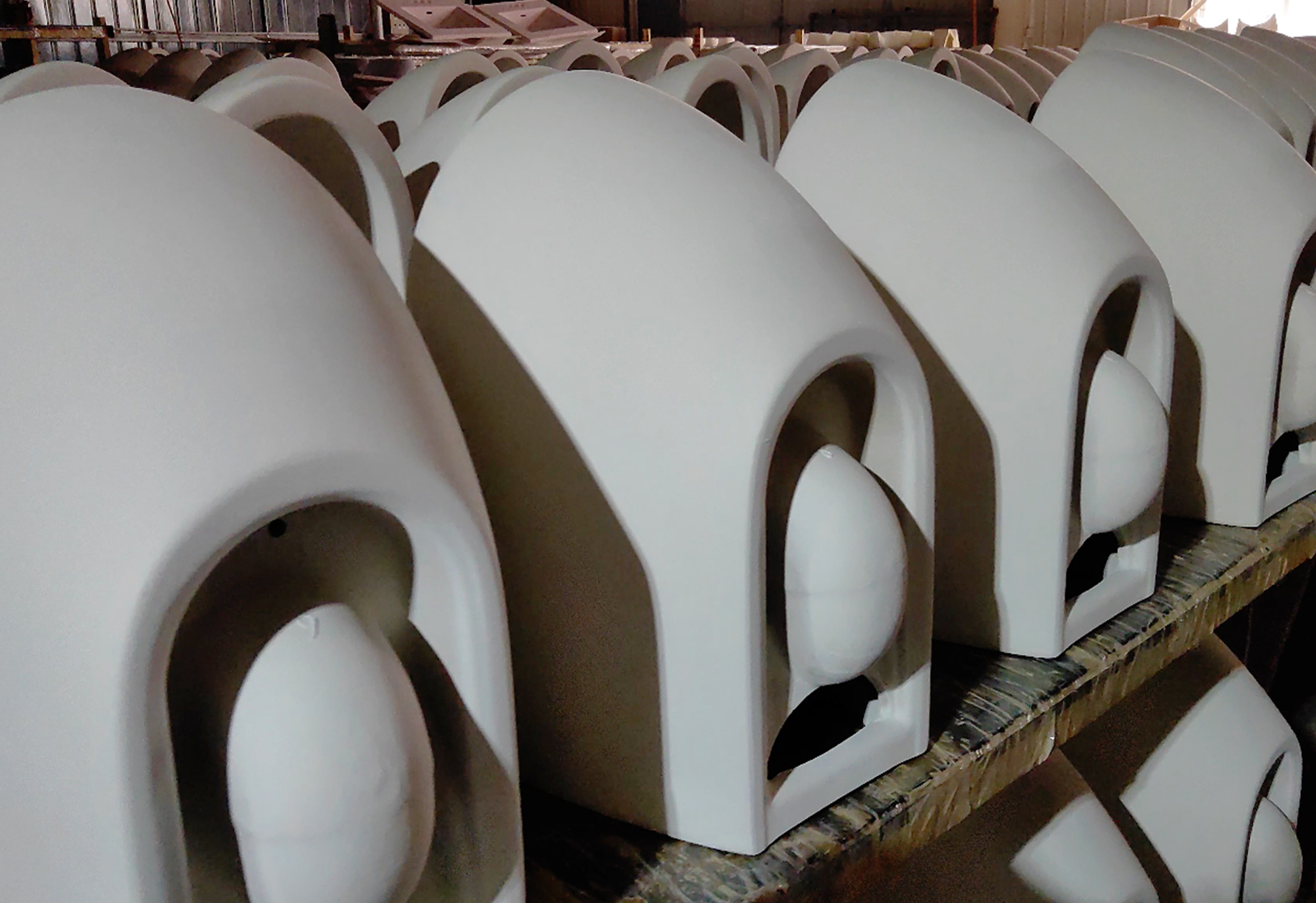

| Controlled Drying The fully trimmed and bonded body is then transferred to a controlled-environment kiln for slow, uniform dehydration. The drying regimen typically follows a curve of “low temperature and high humidity at the start, gradually increasing temperature and decreasing humidity.” This gentle drying strategy aims to control moisture migration and evaporation from the interior to the exterior slowly and uniformly. It effectively prevents cracking or deformation of the body caused by stress resulting from rapid surface drying and residual moisture inside. This process is a crucial safeguard ensuring the green body remains intact for the next stage and determining the final yield rate. |
Ⅴ Glazing: Imparting Surface Smoothness and Easy-Clean Properties
Glazing is the critical process that endows sanitaryware with surface smoothness, aesthetic appeal, and easy-clean functionality. During this stage, the thoroughly dried body surface is uniformly coated with a specialized glaze.

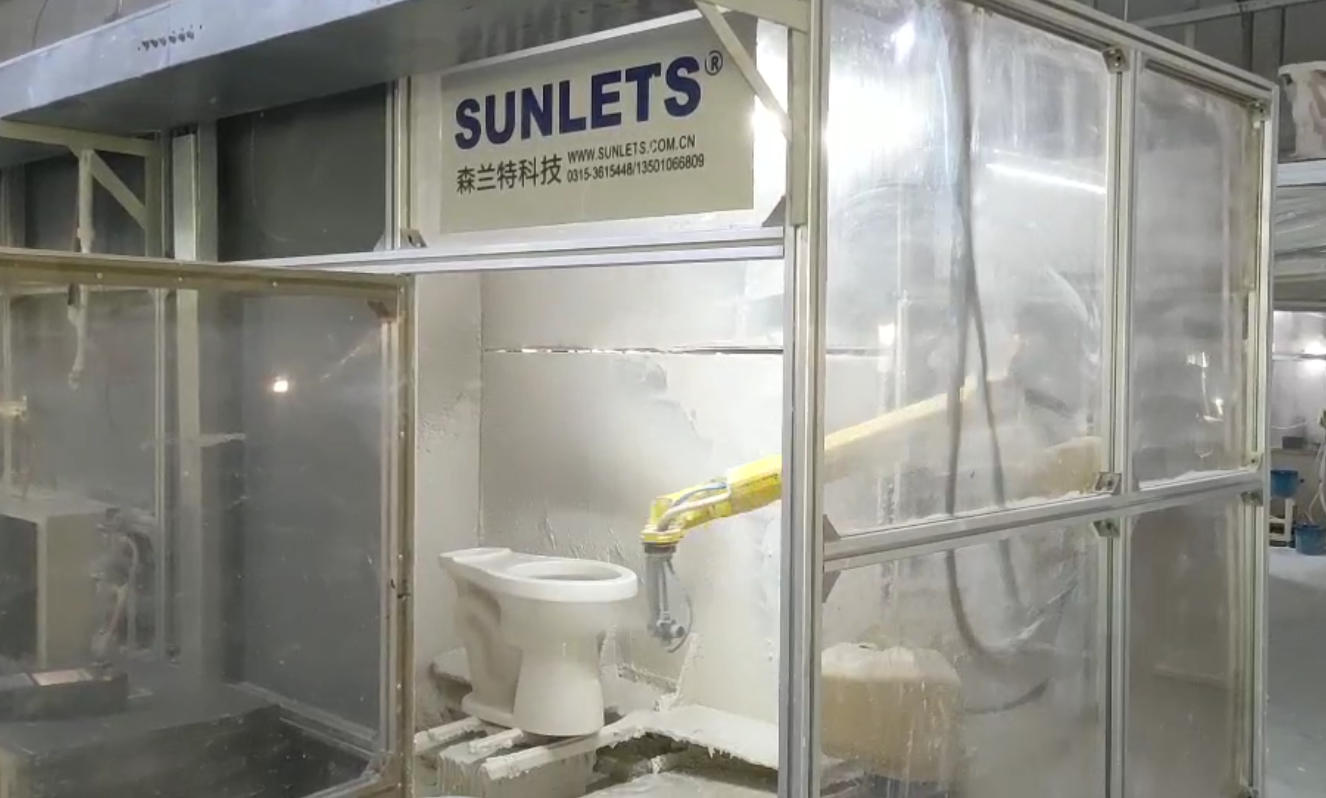

In modern large-scale production, robotic automated glazing systems are widely adopted. Through pre-programmed motion trajectories, robotic arms precisely control spray gun angles, distances, and glaze flow rates, achieving uniform coating without blind spots on complex products like toilets. This automation not only ensures consistent glaze thickness and significantly boosts production efficiency but also markedly reduces the unpredictability of manual operations.
 | Following high-temperature firing, the glaze melts and transforms into a dense, hard, and smooth vitreous layer. This glaze surface forms the physical foundation for core functional properties like stain resistance, impermeability, and wear resistance in sanitaryware, directly determining the final product's quality grade and user experience. |
Ⅵ Kiln Firing: Transformation and Setting at High Temperatures

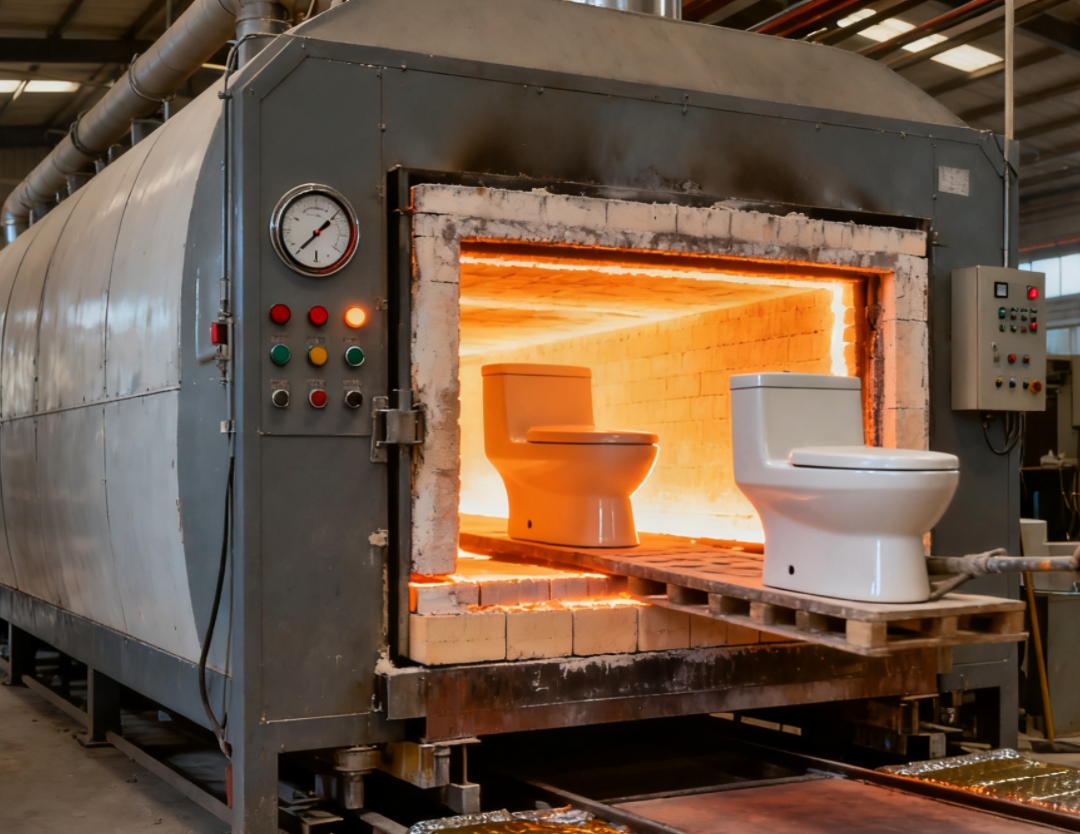

Kiln firing represents the most critical process in sanitaryware manufacturing. During this stage, the green body undergoes physical and chemical reactions, ultimately achieving the ceramic's strength, durability, and stable glaze finish.
Firing Regimes and Processes

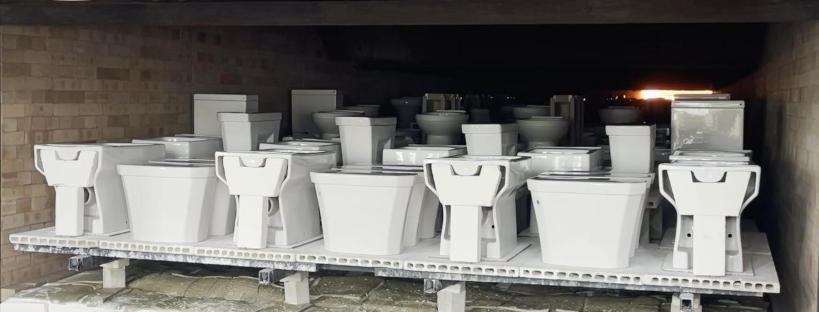

| Sanitaryware typically employs a single-firing process. Before entering the kiln, greenware undergoes thorough drying for 6-8 hours. Subsequently, the greenware moves through a tunnel kiln or roller kiln, progressing sequentially via a conveyor system through the preheating zone (300-1000°C), high-temperature firing zone (approximately 1200-1250°C), and cooling zone. The entire firing cycle (from loading to unloading) takes approximately 24 hours. At high temperatures, the body sintered and densified, the glaze melted to form a vitreous surface, and a certain degree of shrinkage occurred (typically controlled below 1.1% shrinkage rate, with dimensional tolerances under 5mm). |  |
Common Issues and Quality Control
The firing process demands extremely precise temperature profiles and kiln atmospheres. Improper control readily leads to defects such as warping, kiln sticking, firing cracks, pinholes, dull glaze, porosity, and deformation. Therefore, employing computer-controlled modern kilns to meticulously manage heating/cooling rates and temperature uniformity across all zones is fundamental to ensuring high product yield rates.
Ⅶ Inspection and Packaging: Quality Assurance and Value Delivery
Inspection and packaging serve as the final gate before product shipment, directly impacting brand reputation and user experience.
Rigorous Quality Inspection
Every fired piece undergoes comprehensive quality inspection covering:
Visual Inspection: Thorough examination of glaze smoothness and flatness, checking for surface defects like pinholes, cracks, color variations, or impurities.
Performance Testing: The critical “water flow test” ensures unobstructed drainage and flush functionality compliant with national standards. Smart toilets undergo additional specialized testing for electrical circuits and functional safety.
Standardized Finished Product Packaging
Only fully qualified premium products proceed to packaging. Items are meticulously wrapped using custom foam corner protectors, shock-absorbing foam padding, and reinforced corrugated cardboard boxes. This ensures comprehensive protection during storage and transit, guaranteeing products arrive intact at customers' doorsteps. Standardized packaging serves not only as physical protection but also as the ultimate reflection of brand image and professionalism.
Summary
The creation of a seemingly ordinary toilet is anything but simple. From precise raw material blending and iron removal to slip casting using plaster molds; from meticulous drying and trimming to robotic precision glazing; finally, after over twenty hours of high-temperature firing and rigorous factory inspection, it achieves its smooth, white, durable, and reliable quality.
Every step of this lengthy journey embodies the wisdom of materials and the crystallization of craftsmanship. Sanitaryware production is a refined art that integrates physics, chemistry, and materials science. The next time you touch that smooth glaze, we hope you can appreciate the journey of technology and craftsmanship behind it—from raw clay to exquisite masterpiece.
