Ball-milling time determines the particle size, particle-size distribution and rheology of ceramic sanitary ware slip, so it should not be set only by operator experience.
Insufficient milling can leave coarse particles and agglomerates, increasing sieve residue and body inconsistency.
Excessive milling increases the fine-particle fraction and surface area, which may raise viscosity, change deflocculant demand and alter dewatering and shrinkage.

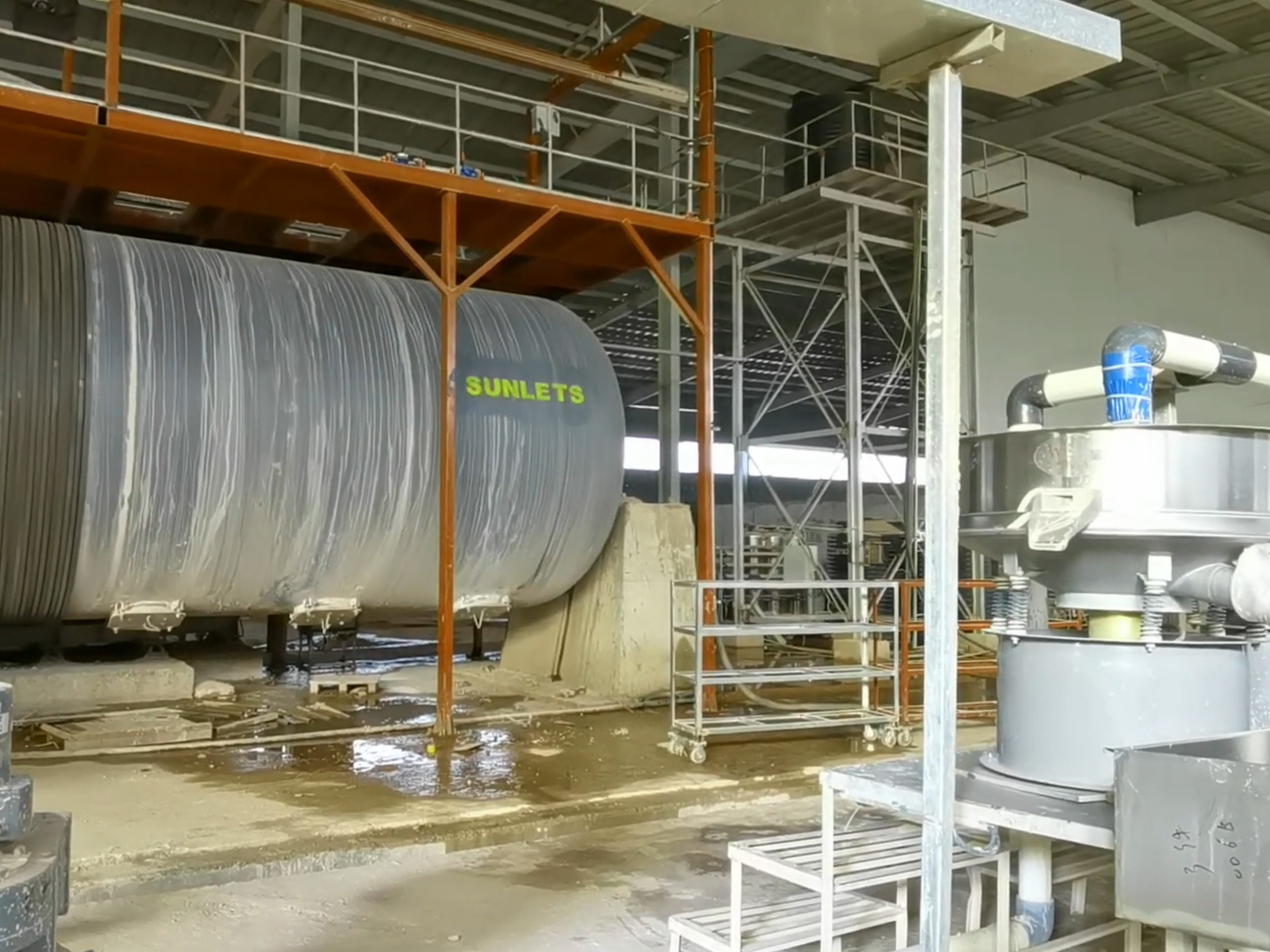

Ball milling uses the impact and friction of grinding media to reduce, disperse and homogenize ceramic raw materials. The correct endpoint is not a fixed number of hours. It is the point at which the slip reaches its specified sieve residue, particle-size distribution, density and rheological operating window.
Particle size affects filling and green-body quality. Excessive coarse material can create local defects and inconsistent surfaces. However, grinding everything as finely as possible is not the answer. A higher proportion of fines increases particle interactions and may make a high-solids slip more difficult to control. Digitalfire’s particle-size distribution reference explains that a useful distribution of coarse, medium and fine particles can improve packing density and dry strength. It also identifies particle-size distribution testing as an important quality-control method for ceramic materials. |  |
Milling variables must be evaluated together. In a study published in Ceramics International, increasing milling time from 30 to 90 minutes reduced slurry D50 from 11.61 to 6.51 μm. The researchers also found that solids loading and dispersant content affected flowability, dispersion and stability. Although the formulation was not a sanitary ware body, the process principle remains relevant: milling time cannot be separated from slurry concentration and chemical dispersion.
The same milling duration may therefore produce different results when raw-material hardness, moisture, mill loading, grinding-media size distribution, rotational speed or slip concentration changes. Grinding-media wear can also reduce impact efficiency gradually, creating batch drift even when operators use the same timer setting.
Record the raw-material batch, mill loading, media grading, rotational speed and milling time.
Measure sieve residue, D50/D90, density, viscosity and thixotropic recovery.
Connect laboratory results with casting time, wall thickness, demoulding and fired defects.
Establish an approved process range through trials instead of releasing every batch after fixed hours.
Sunlets combines sanitary ware manufacturing experience with ceramic forming-equipment development. This makes it possible to evaluate raw-material preparation, slip rheology, mould behaviour and casting parameters as one production system. The purpose of stable milling is not to extend processing time, but to bring every batch into a repeatable particle-size and rheological window.
Ball-milling time is an input, not the final quality standard. A controlled process uses measurable output indicators to decide when milling is complete. When particle-size distribution and slip rheology remain stable, mould filling, wall formation, demoulding and later firing become more predictable.
Is a longer milling time always better?
No. Over-milling may consume unnecessary energy, increase the fine-particle fraction and move the slip outside its rheological window.
Why can two batches differ after the same milling time?
Raw-material variation, media wear, mill loading, rotational speed and slurry concentration can all change the actual grinding efficiency.
