Glaze thickness influences product grade not because a thicker layer is always better, but because the glaze must remain within a controlled process window and cover complex surfaces uniformly.
· A layer that is too thin may reveal body color, trimming marks and local absorption differences.
· A layer that is too thick increases the risks associated with drying shrinkage, gas release and high-temperature flow, potentially causing running, crawling, pinholes and local buildup.
· Premium sanitary ware therefore depends on uniform coverage, stable gloss, clean edges and repeatable batch quality.
Glaze thickness is the thickness of the coating applied to a ceramic body and retained after drying and firing. It is affected by glaze density and viscosity, spray-gun flow, atomizing pressure, gun distance, travel speed, path overlap and body absorption. Glaze control should not rely on one average thickness value. Factories should also evaluate thickness variation across the product and the glaze weight gained by each piece. |  |
1. Hiding power and color consistency
When the glaze is too thin, body color, trimming marks and local absorption differences may remain visible. This can create gray areas, uneven whiteness or local gloss variation. Consistent coverage is necessary to maintain similar color and gloss across flat surfaces, rims, corners, recesses and internal curves.
2. Surface smoothness and tactile quality During firing, the glaze must melt sufficiently to form a smooth surface and heal small irregularities. Digitalfire’s reference on glaze pinholes and pitting notes that a layer that is too thin may not contain enough glaze to heal pinholes. However, excessive thickness can also increase bubbles, pinholes and other surface problems. A smooth, full surface therefore comes from the correct thickness—not simply from applying more glaze. |  |
3. Orange peel, running and crawling risks
When thickness varies, thick areas experience greater flow and shrinkage, while thin areas may remain poorly covered. Digitalfire’s crawling reference explains that thick glaze layers are more likely to crack during drying and then pull away during firing.
Orange peel, dripping and local buildup can directly reduce the visual grade of a product. Even when functional requirements are met, the piece may require rework or be sold as a lower grade.
4. Batch consistency and brand positioning
A premium product must not only look good individually; its whiteness, gloss and tactile quality must remain consistent between batches.

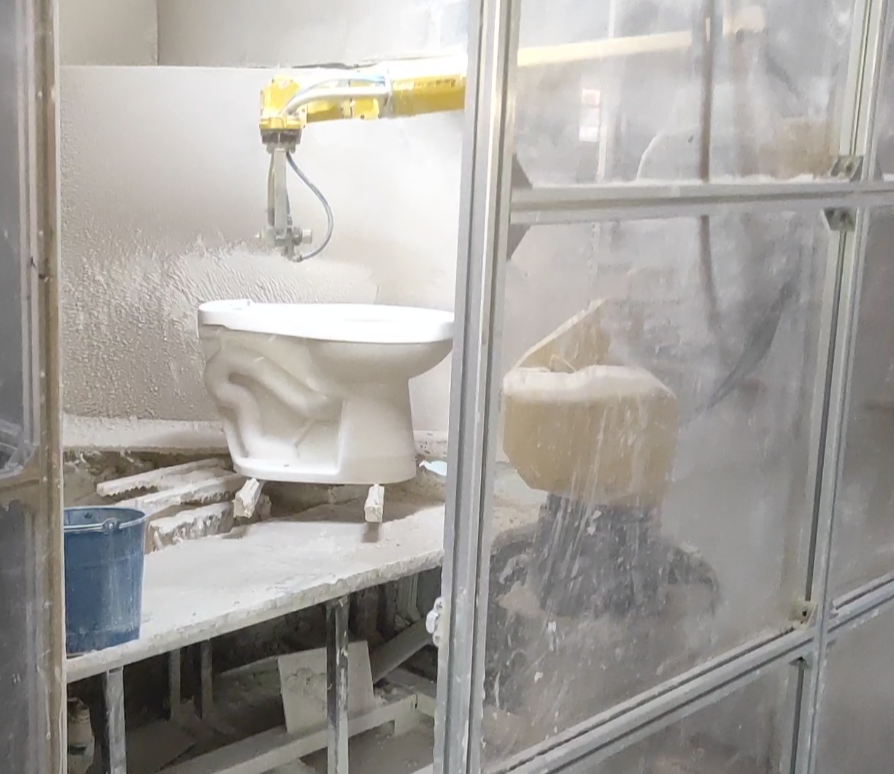

The automated glazing glazing system controls spray-cone angle, atomizing pressure and glaze delivery according to the convex and concave areas of the product. The objective is consistent coverage thickness and reduced orange peel, dripping and overspray.
Glaze condition: Stabilize density, viscosity, temperature and circulation. Spray parameters: Standardize flow, pressure, distance and travel speed. Complex surfaces: Optimize paths for rims, corners, recesses and cavities. Body condition: Control moisture, surface temperature and absorption uniformity. Process measurement: Record glaze weight gain and critical-area thickness. Result traceability: Link thickness data with color variation, orange peel, pitting and first-pass yield. |  |
Glaze thickness determines product grade because thickness uniformity controls the visual and tactile consistency of the surface. A layer that is too thin cannot provide sufficient hiding power. A layer that is too thick may trap gases and create excessive flow or stress. Uneven thickness amplifies color variation, orange peel, pitting and crawling. High-quality glazing does not mean applying an additional coat. It means delivering the correct amount of glaze to every part of the product and reproducing that result through measurable process control.
Q1: Is a thicker sanitary ware glaze always better?
A: No. A thin layer may provide insufficient coverage, while an excessively thick layer can increase running, pinholes, bubbles and crawling. The correct range depends on the glaze, body and firing schedule.
Q2: Why can different areas of the same product show color variation?
A: Curves, rims and recesses may receive different amounts of glaze. Body absorption, gun distance and spray speed can also affect local deposition.
Q3: How can a factory quickly evaluate glaze-thickness stability?
A: Compare glaze weight gain, thickness at critical areas, fired gloss and color, together with variation between shifts and production batches.
