· Uneven airflow creates different moisture-removal rates.
· Large temperature gradients produce moisture differences between the surface and interior.
· Poor support can restrict shrinkage or bend the body under its own weight.
· A qualified system must deliver repeatable dimensions and low defect rates under actual loaded conditions.
Drying system evaluation is the verification of the drying chamber, hot-air circulation, temperature and humidity controls, loading layout, support fixtures and drying curve as one complete production system. The objective is to determine whether products in different positions and batches lose moisture at similar rates and enter the next process with stable dimensions. |  |
1. Airflow uniformity: does air reach every product?
Air velocity should not be measured only at the fan outlet. Tests should be conducted with a realistic production load at the inlet, outlet, upper and lower levels, center and edges. The evaluation should identify: Direct high-velocity zones; Dead zones behind products; Differences between upper and lower racks; Changes in airflow when loading density changes. |  |
2. Temperature gradient: do all products follow the same curve?

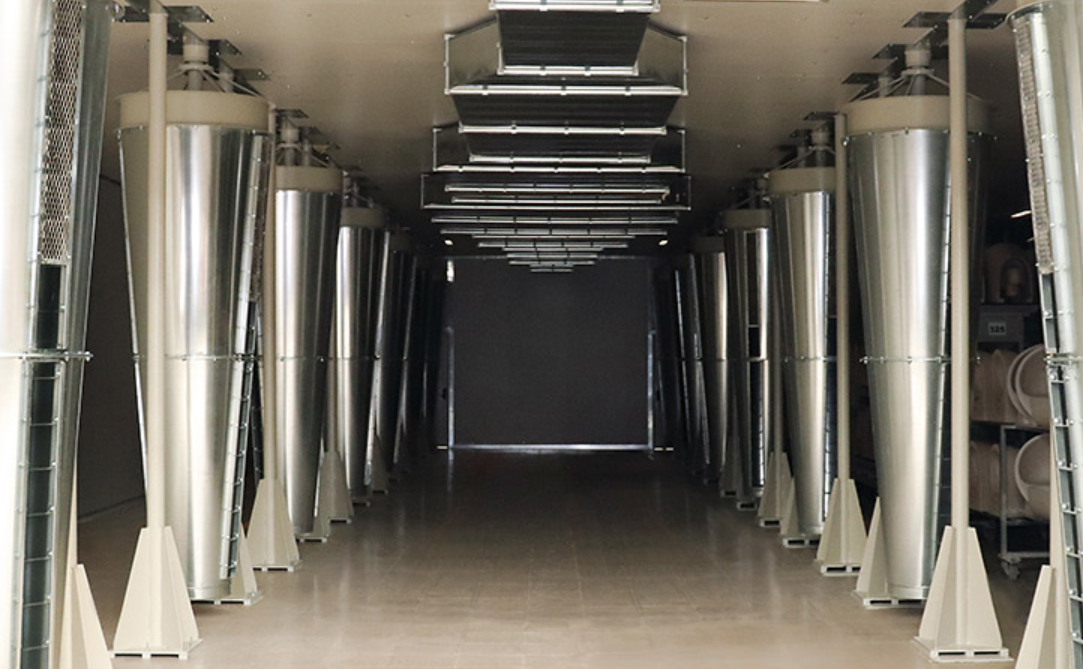

Temperature and humidity sensors should be installed at multiple heights and depths. Data should be recorded during heating, steady drying and cooling, rather than relying on one control-panel reading. Industrial sanitary ware drying systems use swinging air-distribution cones to reach different areas of the ware and provide a flexible temperature range of approximately 90°C to 130°C. This shows that coverage and process control are more important than peak temperature alone. |  |

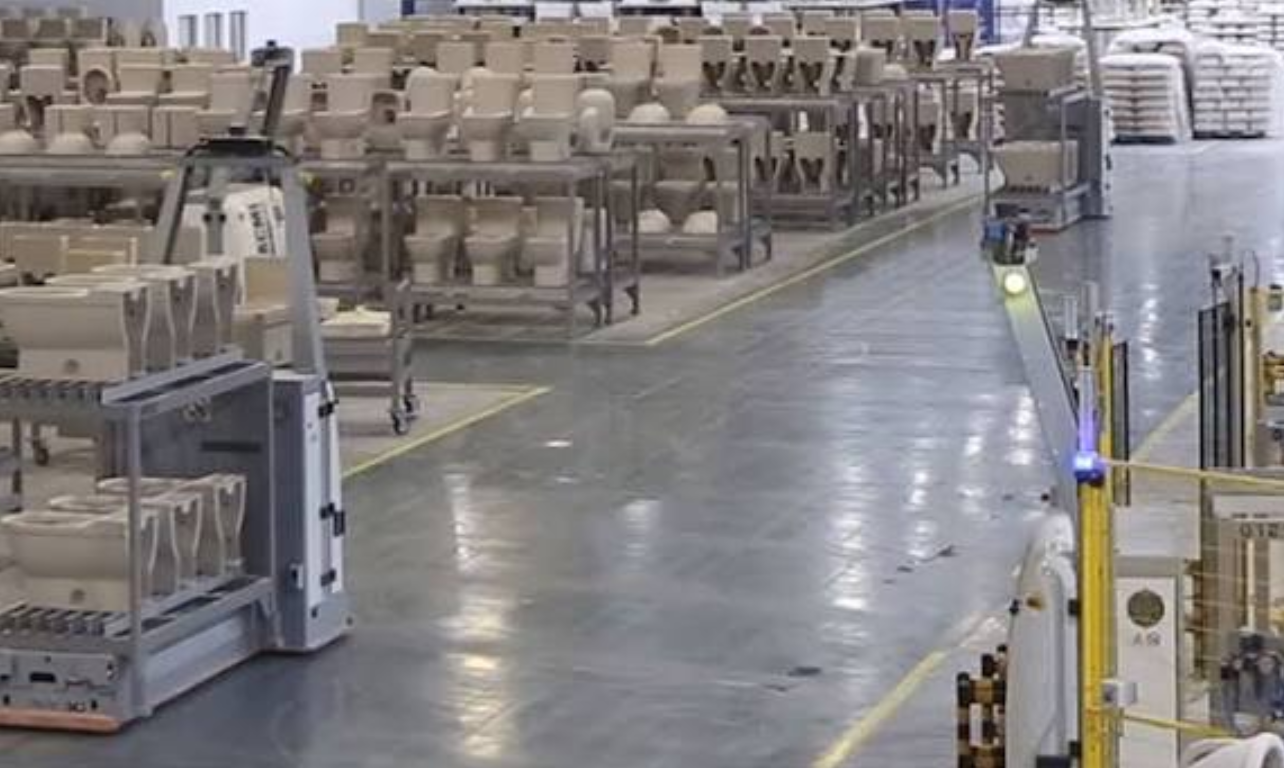

3. Green-body load direction: can the product shrink freely?

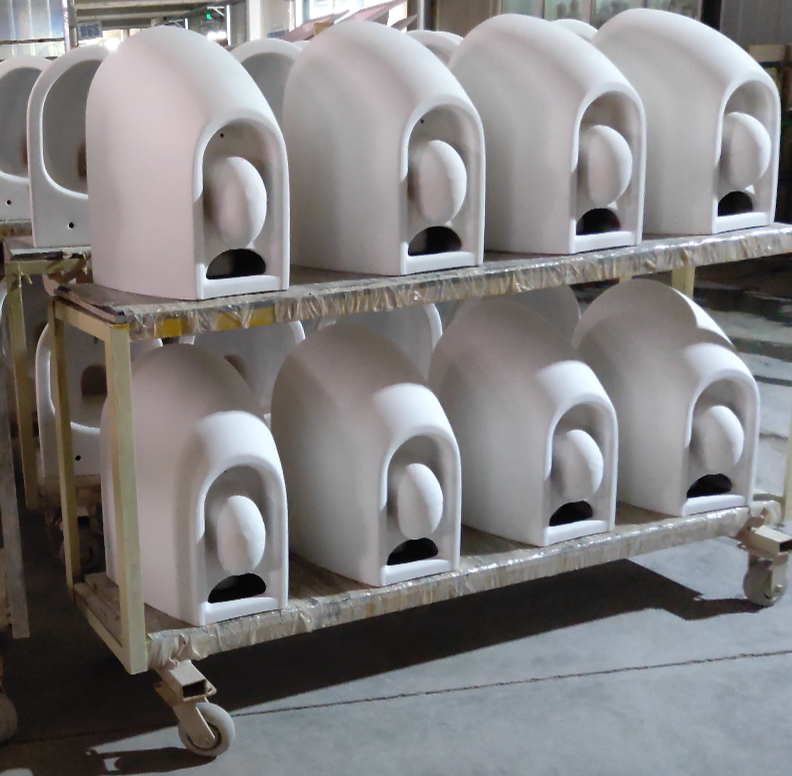

Ceramic bodies shrink during drying. Excessive friction between the body and setter, concentrated support points or unsupported spans may restrict shrinkage and create warping or cracks.
Research on ceramic green bodies has used lubricated supports to reduce mechanical stress caused by adhesion during drying, demonstrating that support conditions can influence measured deformation. Drying Behaviour of Ceramic Green Bodies
The assessment should check:
Whether supports are located under structurally stable areas;
Whether large basins contain unsupported spans;
Whether setters restrict the main shrinkage direction;
Whether changing product orientation changes deformation.
4. Product validation: evaluate qualified output, not only drying time
A final assessment should measure:
Residual moisture and its variation;
Changes in length, width, height and mounting surfaces;
Cracking, warping and rework rates;
Weight-loss curves at different chamber positions;
Energy use and cycle time per qualified product.
Following the logic of ISO 22400 manufacturing operations KPIs, dryer performance should be connected to first-pass yield, throughput and energy consumption instead of equipment operating time alone.
Empty-chamber test: Verify the basic airflow and temperature field.
Loaded test: Use real products, loading density and product mix.
Multi-point monitoring: Measure center, edge, upper, lower, inlet and outlet zones.
Support validation: Compare setters and product orientations.
Product inspection: Check moisture, dimensions, cracks and warping.
Periodic revalidation: Repeat testing after seasonal, product or loading changes.
The value of a drying system is not determined by maximum temperature or fan capacity. It is determined by whether every green body can lose moisture evenly, shrink with minimal restraint and enter the next process with stable dimensions. Airflow uniformity controls moisture-removal differences. Temperature gradients control internal stress. Support direction determines whether deformation is amplified. Reliable drying systems should therefore be validated by loaded product stability and first-pass yield.
Q1: What is the most important indicator when evaluating a dryer?
A: The key indicators are loaded airflow uniformity, temperature and humidity gradients, residual-moisture variation, warping and cracking results.
Q2: Why can products dry unevenly when the displayed temperature is stable?
A: A control-panel reading usually represents only one or a few sensors and may not reflect the actual conditions at chamber edges, different rack levels or product back surfaces.
Q3: Why does green-body support affect drying deformation?
A: The body must shrink during drying. Friction, unsupported spans or uneven support points can restrict shrinkage and concentrate stress, causing warping or cracks.
