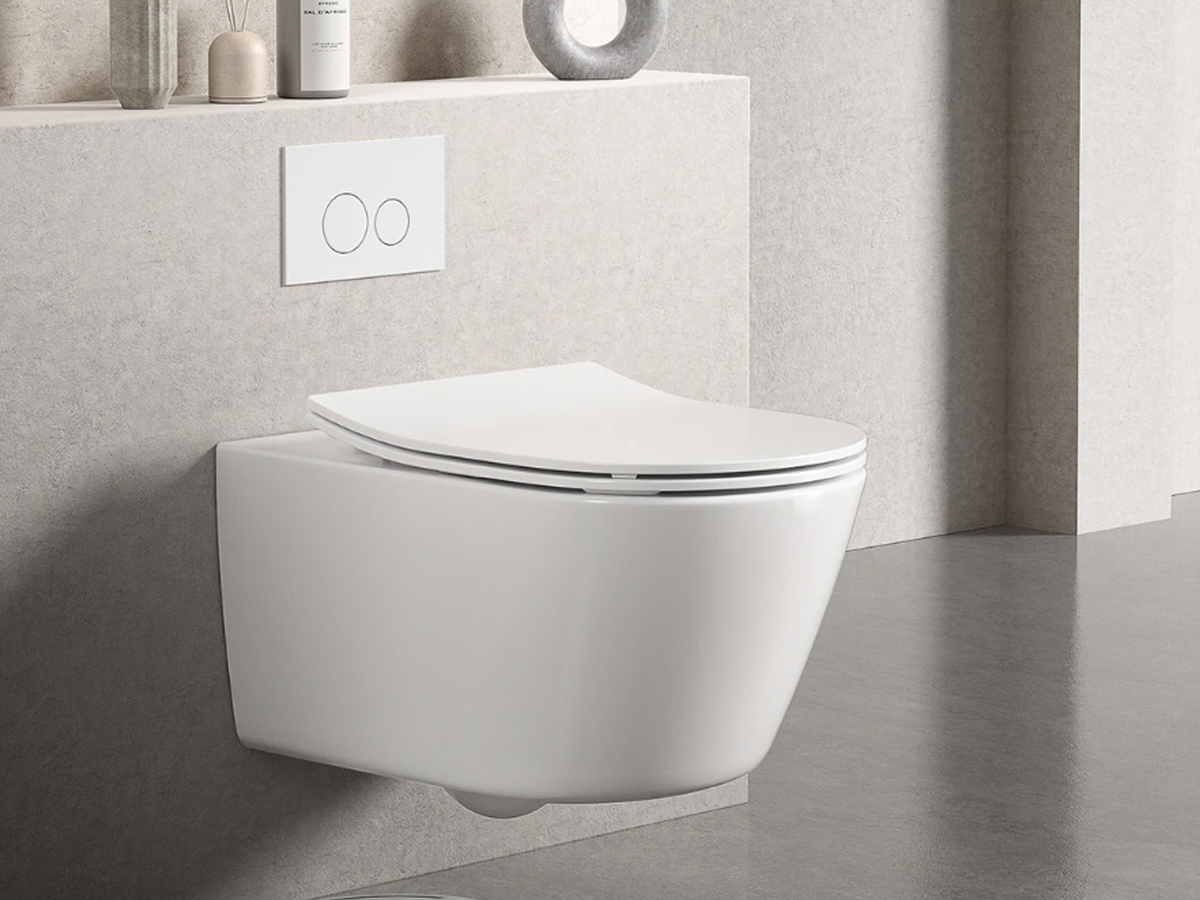

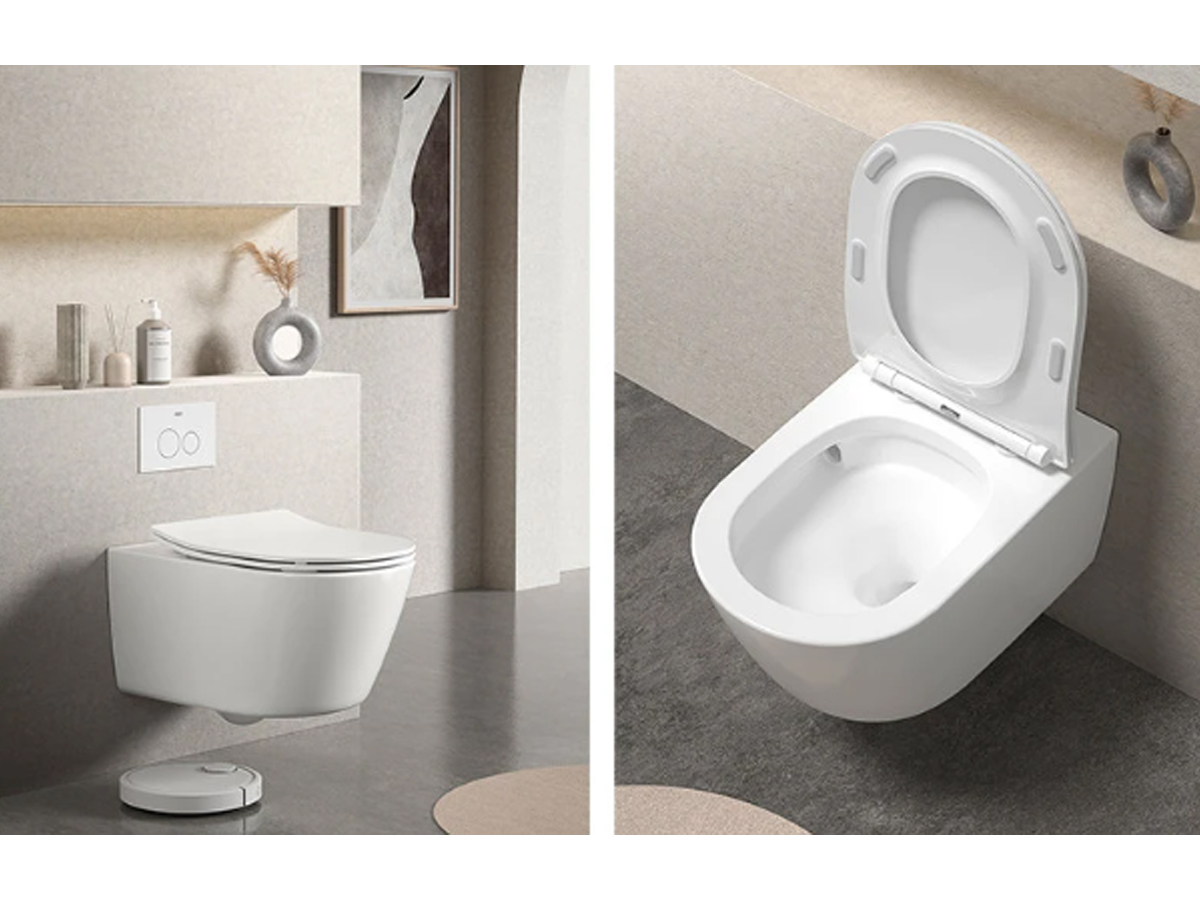

For ceramic sanitary ware factories, a wall-hung toilet is not simply a standard toilet with a different installation method. It requires much higher control over fixing point accuracy, wall-thickness stability and firing deformation. Because it is installed with a concealed cistern and wall frame, the rear mounting surface, fixing holes, outlet position and load-bearing areas must remain accurate and stable.
1. Fixing Points Determine Installation Accuracy and Safety
One of the hardest parts of a wall-hung toilet is fixing point control. A floor-mounted toilet is mainly supported by the floor, while a wall-hung toilet transfers load through the wall frame. The fixing holes, rear plane, outlet position and inlet position must match the installation system. Even small deviation can cause installation gaps, uneven stress or cracking risk. The European EN 997:2018 standard includes static load requirements for wall-hung WC pans, showing that these products must meet structural and installation performance requirements, not only appearance and flus |  |
hing performance. For factories, fixing point accuracy is not a drilling issue at the end. It must be controlled from product design, mold development, forming shrinkage and firing deformation.
2. Wall-Thickness Control Affects Strength and Shrinkage
A wall-hung toilet has a compact structure, but it includes the outlet channel, load-bearing zones, rear mounting surface, rim and side walls. These areas often have different wall thicknesses. If wall thickness is unstable, drying and firing shrinkage will also be uneven. Over-thick areas dry slowly and retain more moisture. Over-thin areas may lack strength, deform after firing or become unstable under installation load.
Therefore, wall-thickness control must begin during mold design and forming. Slip density, flowability, mold absorption, casting time, draining rhythm and demolding strength should all be managed within defined process windows. Only when the green body structure is stable can drying and firing become controllable.
3. Firing Deformation Determines Final Dimensions
Firing deformation is especially critical for wall-hung toilets because the rear plane, fixing holes, outlet and overall shape all need dimensional accuracy. Heating rate, soaking time, kiln temperature uniformity, kiln support and cooling curve can all influence final deformation. If the product is not supported properly or different areas shrink unevenly, the fired piece may show rear-surface warpage, hole misalignment, rim deformation or outlet angle deviation.
ASME A112.19.2/CSA B45.1 covers ceramic plumbing fixture requirements for materials, construction, performance, testing and marking, including structural integrity considerations for wall-mounted fixtures. For wall-hung toilets, dimensional stability and structural reliability after firing are as important as glaze appearance.
4. System Control Matters More Than Single-Point Correction
| The real difficulty of a wall-hung toilet is meeting installation accuracy, structural strength and firing stability at the same time. SACMI sanitary ware casting systems highlight the role of high-pressure casting, mold systems and parameter consistency in sanitary ware production. Equipment can improve repeatability, but final quality still depends on coordination among design, slip preparation, mold control, drying, firing and inspection. |  |
Conclusion
The hardest part of producing a wall-hung toilet is not only its shape. The fixing points must be accurate, the wall thickness must be stable, and firing deformation must be controlled. Fixing points determine installation. Wall thickness determines strength. Firing determines final dimensions. For ceramic sanitary ware factories, producing a qualified wall-hung toilet requires a full-process quality control system from structural design to final inspection.
