In ceramic sanitary ware production, pinholes, glaze running, orange peel, color variation, exposed body, crawling and unstable gloss are rarely caused by one single process.
Glaze quality seems to be created in the glazing booth, but it is actually influenced by glaze slurry, spray gun parameters, production cycle time, body absorption and firing conditions.
To solve glaze defects, factories must understand the relationship between these variables instead of relying only on rework.

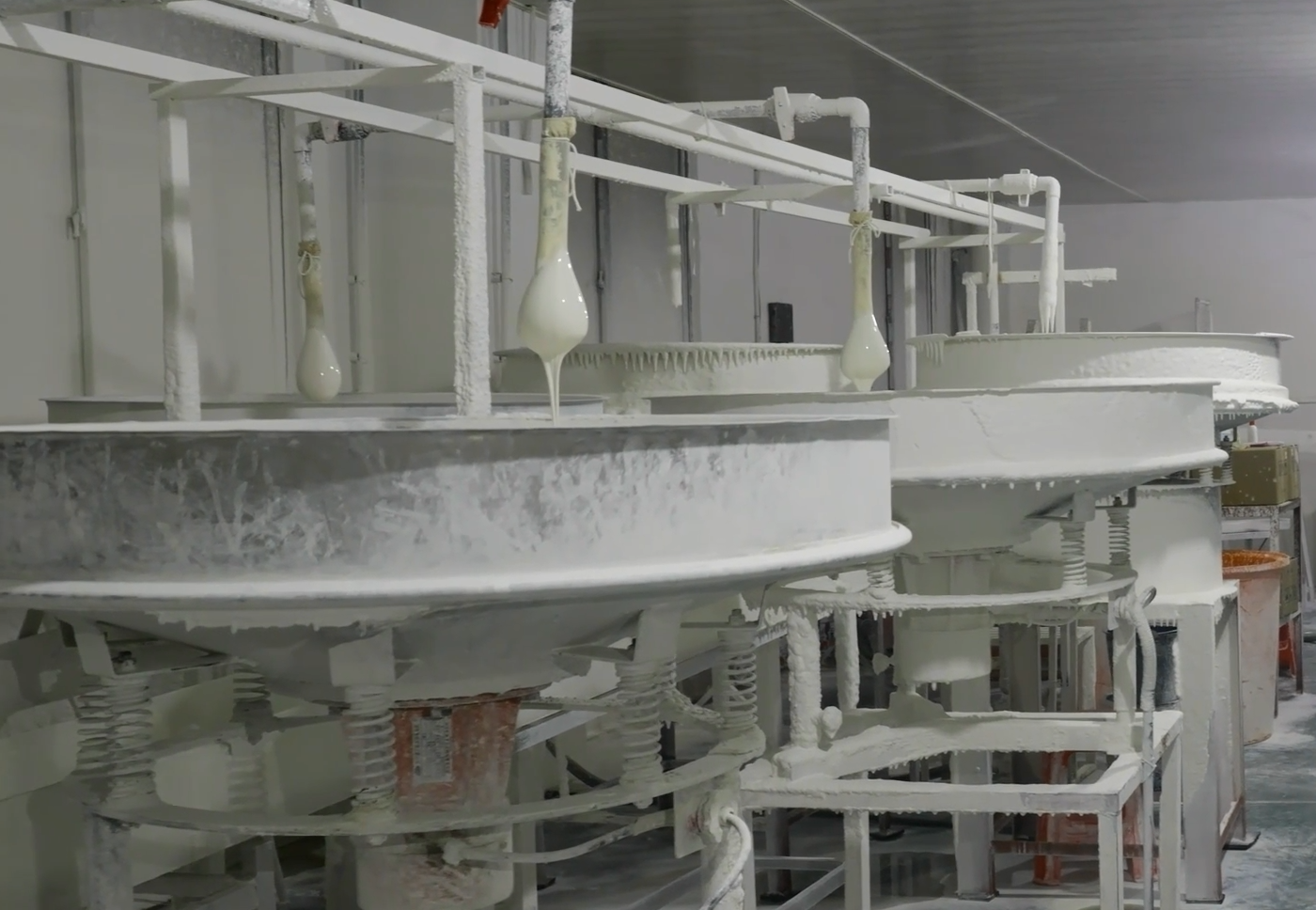

| Glaze slurry density, viscosity, flowability, suspension stability, particle fineness and stirring condition directly affect glaze thickness and adhesion. If the slurry is too thin, coverage may be insufficient, causing exposed body or poor gloss. If it is too thick, atomization becomes difficult, causing local buildup, running or orange peel. If the slurry settles or circulation is poor, color variation and thickness differences may appear even within the same batch. |  |
Digitalfire’s ceramic glaze defects reference includes pinholes, blisters, crazing, crawling and color problems as common glaze defects. This shows that glaze defects are not only surface issues. They are the visible results of material, process and firing interaction.
| Spray gun distance, angle, pressure, flow rate, atomization, moving speed and overlap determine how much glaze is deposited on each area. If the gun is too close, glaze impact is concentrated and the layer may become too thick. If the gun is too far away, material loss increases and edges or recessed areas may become too thin. If speed is too slow, thickness increases. If speed is too fast, coverage becomes insufficient. |  |
The study Changes in Thickness and Gloss of Dry Films According to Spray Methods shows that spray distance, gun speed and spraying method influence film thickness and gloss. Although the study is not specific to sanitary ware, the coating principles are relevant to ceramic glazing uniformity.
Glazing cycle time affects not only output, but also surface quality. If green bodies wait too long before glazing, their surface absorption may change. If the interval between products is unstable, booth humidity, slurry circulation and operator rhythm may also fluctuate. In manual glazing, different operators may use different speed, angle and touch-up habits, creating batch variation.

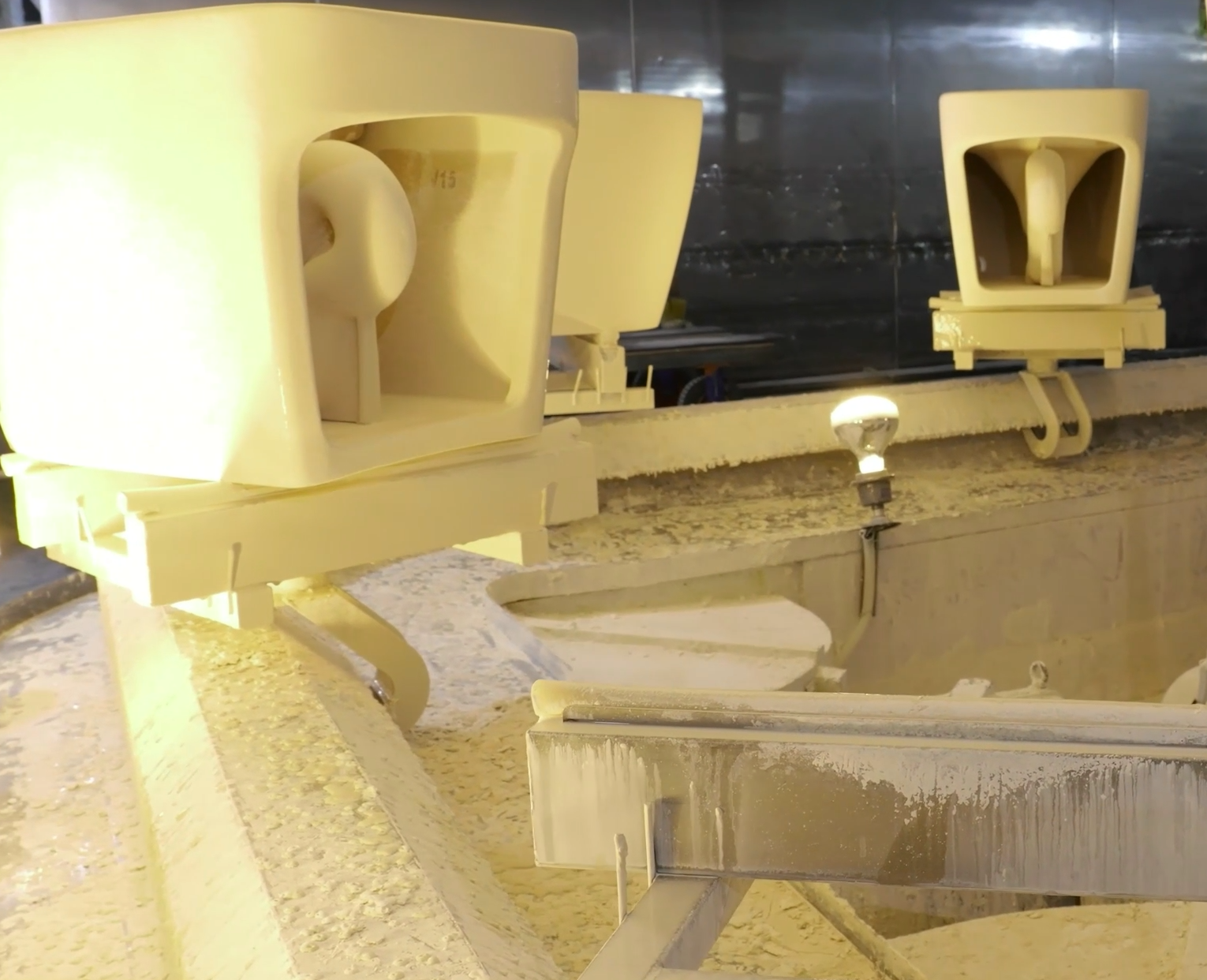

The value of robotic glazing systems is improved repeatability of path, angle, speed and spraying sequence. Automation is not only about replacing manual work. It is about reducing cycle variation and operator-dependent differences.
Many glaze defects do not begin in the glaze slurry. They begin in the body. Body moisture, surface dust, trimming marks, local density and absorption rate affect how quickly glaze attaches and dries. If absorption is too fast, the glaze layer may become dry, rough or uneven. If absorption is too low, adhesion may be weak, causing running or crawling.
Factories should control body drying condition, surface cleanliness and waiting time before glazing. Body batch, drying condition, glaze slurry data, spray gun settings and firing results should be connected. Following the logic of ISO 22400 manufacturing operations KPIs, factories should track first-pass yield, rework rate, defect type and abnormal batches to determine whether defects come from slurry, equipment, operation or body condition.
Glaze defects are not simply a question of whether spraying is good or bad. They are caused by the combined effect of slurry, spray gun parameters, cycle time, body absorption and firing conditions. Slurry defines the glaze foundation. The spray gun defines deposition. Cycle time defines process stability. Body absorption defines adhesion and drying behavior. Stable glaze quality comes from standardized parameters, consistent execution and traceable defect analysis, not from final rework.
