Equipment Parameters
| Parameter Category | Parameter Item | Typical Range | Remarks |
| Navigation & Motion | Navigation Method | Laser SLAM / Vision / Magnetic Tape / QR Code | Choose based on environmental complexity |
| Positioning Accuracy | ±5mm ~ ±10mm (range) | Higher accuracy generally increases cost | |
| Maximum Travel Speed | 0.8 m/s ~ 1.5 m/s (range) | Related to payload and safety requirements | |
| Payload & Dimensions | Rated Payload | 100kg / 500kg / 1T (optional range) | Key customization parameter; determines model and price |
| Self Weight | Depends on payload and structural design | Affects floor load requirements | |
| Body Dimensions (L×W×H) | Customized per customer | Must match carrier (pallet, cart, etc.) and aisle dimensions | |
| Electrical & Endurance | Programmable Logic Controller (PLC) | Siemens | |
| Drive Method | Differential Drive / Omnidirectional Drive (optional) | Determines mobility flexibility | |
| Robot Brand | Fanuc | ||
| Electrical Components | Schneider or Omron | To be selected based on actual requirements | |
| Operating Endurance | 8 hours ~ 24 hours (range) | Related to battery capacity and usage frequency | |
| Environment & Installation | Operating Surface | Level epoxy floor / Tile / Slight ramp | Site conditions must be specified in advance |
| Operating Temperature | 0℃ ~ 40℃ (range) | Special environments (low temp, cleanroom) require customization | |
| Protection Rating | IP22 (indoor) / IP54 (dust & water resistant) | Select based on environment (e.g., workshop humidity) |
Core Technologies and Features
1.Advanced Navigation and High-Precision Positioning:
LiDAR SLAM Navigation: Constructs real-time environmental maps and provides precise positioning using LiDAR, requiring no site modifications and offering
exceptional flexibility.
Natural/Visual Navigation: Utilizes feature points or QR codes for positioning, enabling rapid deployment and convenient path changes.
Hybrid Navigation: Integrates multiple navigation technologies (e.g., LiDAR + Vision + Inertial Navigation) to adapt to more complex and dynamic environments,
ensuring stable operation.
2.Intelligent Sensing and Safe Obstacle Avoidance:
Equipped with multi-level safety sensors (LiDAR, 3D Vision, Ultrasonic, Anti-collision Strips) for 360° blind-spot-free protection.
Possesses dynamic obstacle avoidance capabilities, identifying and safely bypassing sudden dynamic obstacles such as people and objects, eliminating the need
for stopping and waiting, and ensuring process continuity.
3.Powerful Scheduling and Cluster Collaboration:
Unified command by a central dispatch system (Fleet Management System), enabling multi-vehicle collaboration, optimal task allocation, and intelligent traffic control.
Seamlessly integrates with upper-level MES/WMS/ERP systems, receiving handling instructions, providing execution status feedback, and achieving a closed loop of
logistics and information flow.
4.Modular Design and Wide Range of Vehicles:
A variety of vehicle types are available, including towing, forklift, roller docking, and lifting types, compatible with pallets, trolleys, racks, and special tooling.
The modular design facilitates quick replacement of lifting mechanisms, forks, etc., to meet diverse material handling needs.

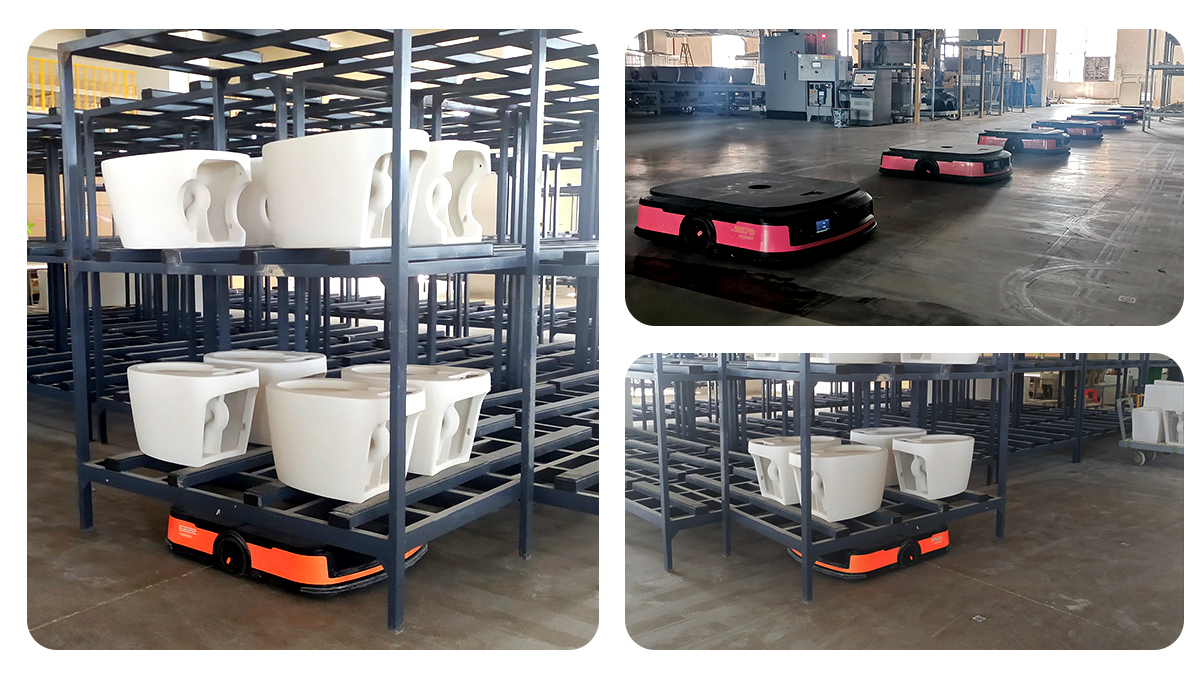

Product Usage Scenarios
Core Value Created for Customers
Cost Reduction and Efficiency Improvement: 24/7 uninterrupted operation reduces reliance on manual forklift drivers, directly lowering labor and long-term management
costs. Handling efficiency is significantly improved, with stable and controllable cycle times.
Enhanced Safety and Qualit: Eliminates safety accidents and material damage caused by human fatigue and misoperation, ensuring the safety of personnel and goods
and improving product quality consistency.
Enhanced Flexibility: When production layout changes, routes can be quickly replanned via software without requiring huge hardware upgrades, enabling rapid response
to market changes and flexible production needs.
Data and Transparency: End-to-end digital tracking of material flow provides real-time location, task status, and efficiency analysis data, providing precise data for production
optimization and decision-making.
Optimized Space Utilization: Compact travel paths eliminate the need for wide aisles and allow for high-level rack access, effectively improving warehouse space utilization.
