Equipment Parameters
| Parameter Category | Parameter Item | Typical Range | Remarks |
| Mechanical Parameters | Payload Capacity | 50kg~200kg | Customizable gripper and arm length |
| Working Radius | 1500 mm~2500 mm | Optional standard or extended arm length | |
| Repeat Positioning Accuracy | ±0.05-0.15 mm | Accuracy grade options available | |
| Electrical Parameters | Core Components | PLC, Motor, Gearbox | |
| Rated Power | Customer Customized | Configured based on speed and load | |
| Number of Axes | 6 axes | ||
| Structure | Articulated | ||
| Power Supply Method | 3-phase 380V / Single-phase 220V | Optional | |
| Programmable Logic Controller (PLC) | Siemens | ||
| Electrical Components | Schneider or Omron | To be selected based on actual requirements | |
| Physical Dimensions | Weight | 140-200Kg (range) | Customized plans according to specific requirements |
| Robot Base Dimensions | Customer Customized | Adapts to production line layout | |
| Installation Space Requirements | Based on solution design | Layout guidance provided | |
| Installation & Service | Installation Type | Floor, Bracket, Ceiling | |
| Operating Temperature | 5°C~45°C | ||
| After-sales Service | Installation videos and technical services available | Please specify in advance if special requirements exist |
Core Technologies and Features
High-Temperature Resistant Design - Uses aerospace-grade insulation materials and active cooling systems, with core components capable of withstanding 200℃ environments.
Thermal Deformation Compensation - Equipped with temperature sensors and thermal expansion compensation algorithms ensuring positioning accuracy of ±1.5mm in high temperatures.
Intelligent Kiln Car Docking - Laser positioning system accurately identifies kiln car positions with automatic loading/unloading docking accuracy of ±2mm.
Adaptive Fixture System - Heat-resistant fixtures support quick changeovers for different sizes and shapes of green bodies and finished products.
Kiln System Integration - Seamless integration with various kiln control systems including tunnel kilns and shuttle kilns for fully automated cooperative operation.

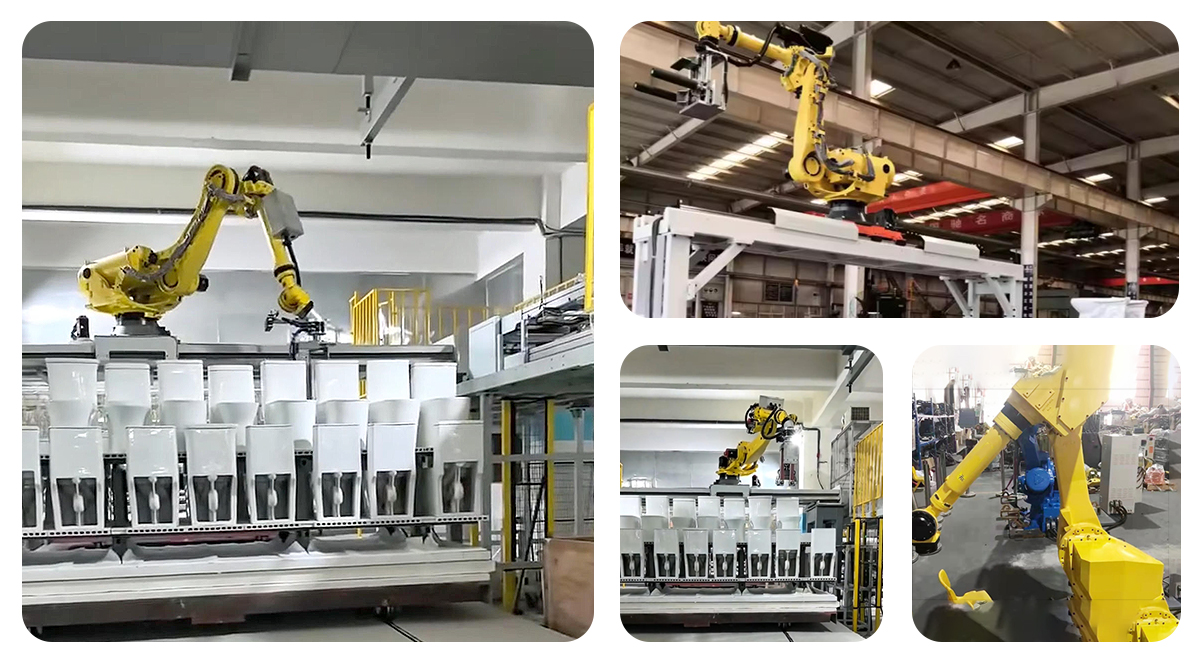

Product Usage Scenarios
Sanitary Ceramics Industry: Automatic loading and unloading of toilet, basin, and other ceramic green bodies.
Building Ceramics: Automated handling of tiles and floor tiles before and after firing.
Special Ceramics: High-temperature processing of refractory materials and electronic ceramics.
Glass Industry: Automated feeding and discharging of glass products in furnaces.
Core Value Created for Customers
Production Safety Assurance: Complete elimination of manual entry into high-temperature kiln areas, 100% reduction in work-related accidents.
Firing Quality Improvement: Precise and stable handling operations reduce product breakage rates by over 90%.
Kiln Efficiency Multiplication: 24-hour continuous operation increases kiln turnover rate by 25-40%.
Long-term Cost Optimization: Reduces high-temperature position allowances and equipment cooling time, lowering energy consumption by 15%.
Production Digitalization: Real-time monitoring of loading/unloading data optimizes firing curves and energy management.
