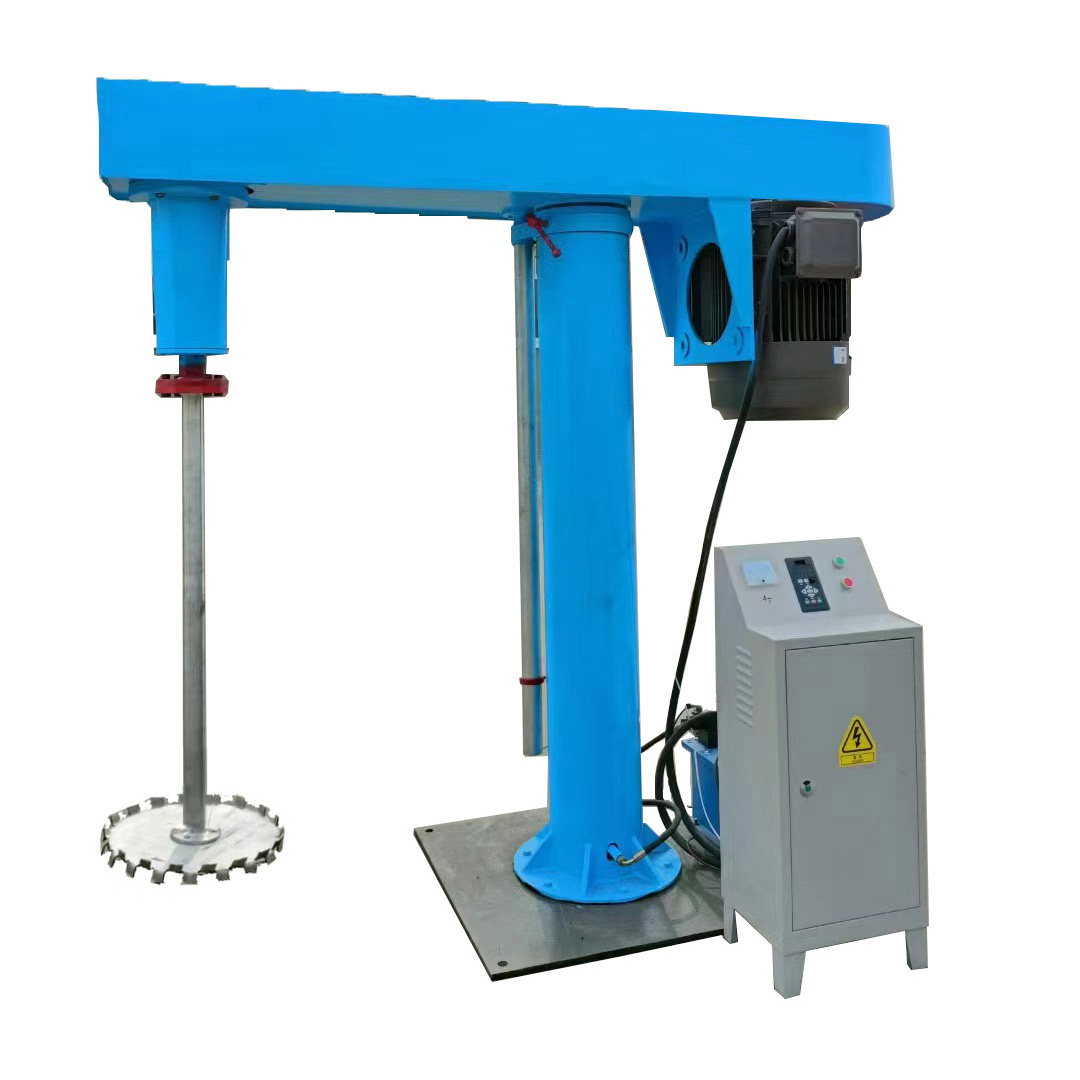

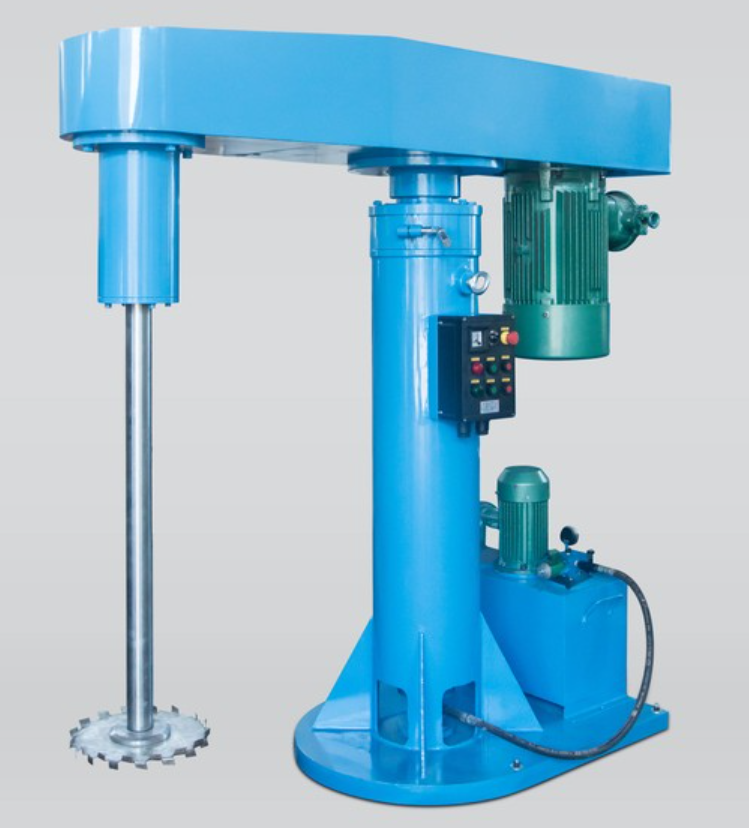

This high Speed Disperser Machine that we manufacture and export are made available. These equipment are primarily used for premixing enamels before passing through sand mills, dispersion of water-based emulsions and finish paint blending. Dispersers supplied by us can efficiently premix, and grind, and deliver a homogenized mixture.Leading Manufacturers Supplier and exporter of High Speed Disperser
A high speed dispersion machine is equipment with a high level of efficiency for stirring, dissolving, and dispersing a variety of liquids, coatings, inks, plastics, adhesives, papermaking, rubber, mixed paints, fillers, and solvents are only some of the industries that will make extensive use of them.
POWER(KW) | RPM | CENTER DISTANCE | STIRRING ROD LENGTH |
7.5/11 | 120-1400rpm | 850mm | 1600mm |
HEIGHT | MAX BLADE TO GROUND | BLADE Dia | MIN BLADE TO GROUND |
1955mm | 1000mm | 260mm | 275mm |
(optional)
The dissolver is a quick, large-volume disperser that works very well and can go at a lot of different speeds.
Speed control with a push button
Speed indicator and speed lowering on its own
The dispersion disk speeds up the product in a radial direction. The tank wall deflects the product to the top and bottom, and a swirl forms that sends it back to the dispersion disk.
The shear forces around the toothed disk's edge make it very good at spreading, wetting, and breaking up clumps.
A tank wall scraping device can help mix and spread out products with a high viscosity.
Hydraulic device for raising and lowering
Adjustable stroke with a push button
Tank locking system that can be adjusted
shaft and disk made of stainless steel; based on the application, you can also get product-specific mixing tools.
Made according to the rules set by CE
Choices ∙Tank cover designs made for special uses
Design for a vacuum scraper for the tank wall
Sensor for temperature Timer
Designed to be mounted on the ceiling with a hinged head. Several levels of explosion protection.
Unique ways to clamp down on tanks
Units run by PLCs
Better off
Simple to handle, which saves time and money
customized solutions upon request; a wide range of versions with different features are offered for the highest level of process safety
Several mixing tools that are easy to switch out to improve speed
measuring temperature with a stick or an agitator shaft, which makes the production process more reliable.
The pneumatic lifting and lowering device allows the mixing tool to be placed in the best place.
Dissolver won't work until the jar is in the right place.
At the lowest possible speed
Two-handed operation for lifting/lowering of the tank cover (optional design)
Automatic switch-off, if the toothed disks are lifted above the level of the tank
Protection against unintentional contact with the rotating shaft
Bellows acting as dust protection for the shaft.
